Tennis Elbow/Lateral Epicondylitis

Background

Tennis Elbow also known medically as Lateral Epicondylitis, is characterized by pain in the lateral portion of the elbow.  Common causes for this condition include people that are commonly overusing their upper extremities.  A quick way to test for this condition is known as the Maudsley's Test.  This test is performed by pressing down on a person's middle finger and having them resist as shown in the video.  This test is particularly looking at inflammation to the Extensor Digitorum muscle which becomes inflamed in tennis elbow.  If pain is reproduced then this is a positive test for Tennis Elbow/Lateral Epicondylitis.

  Although it can be found in tennis players, it is commonly caused by repetitive use of the wrist in extension.  Professions such as carpenters and musicians may also experience this outside elbow pain.  One group of musicians in particular that can be affected are violinists.



Recommended Products

Treatment

Icing should be done multiple times a day at the muscles origin until the pain is completely gone. An ice pack  for 15 -20 minutes is recommended.

Ice for Tennis Elbow

To warm up, preform gentle range of motion of the wrist. Flex the wrist then extend back to neutral for 10 times.

Wrist Extension Warm Up

Next, follow this with a full wrist and finger flexion stretch. Make sure to keep the elbow fully extended.  Each stretch should be held for 15-20 seconds and done multiple times a day.

Full Wrist and Finger Flexion Stretch

Another way to do the same type of stretch is to use a wall. Again, elbow straight and wrist flexed.

Full Wrist and Finger Flexion Stretch With Wall



Once the pain has decreased,  you may begin strengthening exercise. Start with eccentric, or "the negative contraction," of the muscle only.   Support the elbow and forearm on a table with the backside of your hand facing upward.  Extend the wrist fully. Once extended, place a weight in your involved hand then lower the weight down. Remove the weight and return your wrist into full extension. Build up to 3 sets of 10 reps.

Wrist Extension Eccentric Strengthening With Dumbbell



The same type of exercise may be done with a stretchy band. Again, make sure to focus on doing the negative or lengthening contraction of the muscle only. Remember to build up to 3 sets of 10 reps. If your pain increases you may be doing too much, too soon.

Wrist Extension Eccentric Strengthening With Band



A Flex Bar is another tool that may be used to preform eccentric contraction exercises.  Hold the bar firmly in both hands. Twist the non-effected side forward while stabilizing with the effected side. Now slowly allow the effected side to rotate forward.  Remember only rotate back to the starting point with the non-effected side. Build up to 3 sets of 10 reps.

Wrist Extension Eccentric Strengthening With Flex Bar

If you are feeling little to no pain with the previous eccentric exercise, you may move to doing both concentric and eccentric muscle contractions.  These may be done using a dumbbell or stretchy band. Build up to 3 sets of 10 reps.

Wrist Extension Concentric and Eccentric Strengthening With Dumbbell

Wrist Extension Concentric and Eccentric Strengthening With Band

Massage may help as well. A gross rubbing of the muscle is Ok, but is not as  effective as a cross friction massage shown here.  Apply light to moderate pressure, to begin and remember to massage across the muscle not with it.

Cross Friction Massage

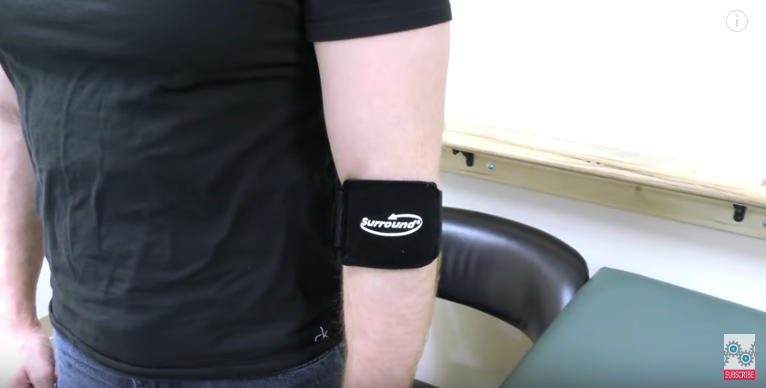

A counter pressure elbow strap may help during activates. Secure the strap slightly below the elbow joint.  Find the bony knot on the outside of the elbow and place the strap just below that. Don't allow the strap to fall down on the larger part of the muscle belly.

Counter Pressure Strap

Since Lateral Epicondylitis can be aggravated by over gripping. All objects that you grip firmly should be modified. Use athletic tape or any other self-adhering wraps to make the modifications. The goal with wrapping is to increase the  circumference of handle of the object that you are gripping thus not allowing you to over grip and strain the muscles.

Grip Modification

References

Page P. A new exercise for tennis elbow that works!. N Am J Sports Phys Ther. 2010;5(3):189-93.
